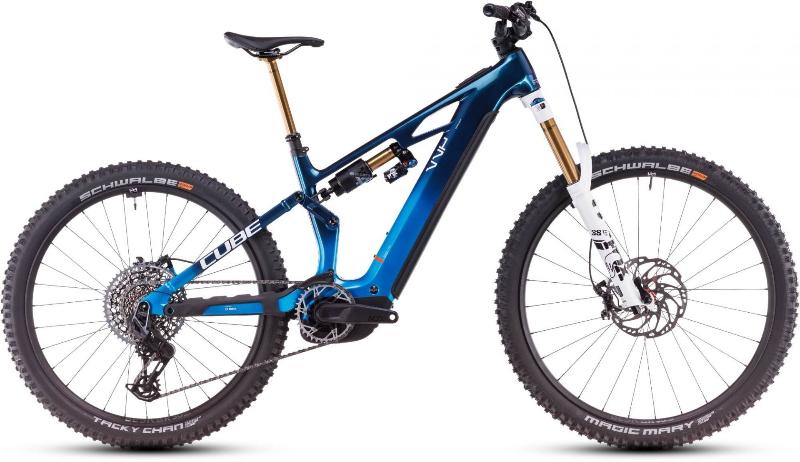

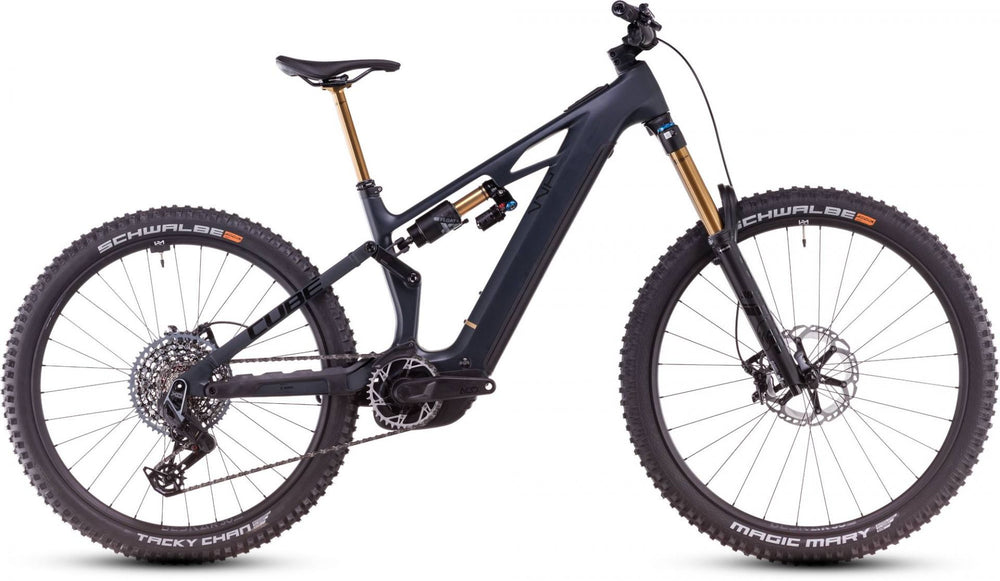

Cube Stereo Hybrid ONE77 HPC AT 800 Electric Bike 2025
803510S
- Description
- Size Guide
- Delivery
Please contact the store for availability.
The Cube Stereo Hybrid ONE77 HPC AT 800 is designed with rugged terrain in mind. It features Fox's Float 38 Factory GripX2 fork and Float X2 Factory shock with 170mm of travel, providing reliable and precise handling. The Sram XO Eagle Transmission 1x12 gears are electronically controlled for optimal performance, while Bosch's smooth and quiet CX drive, along with the 800 Wh PowerTube battery, deliver powerful assistance on the trail. For added confidence and control on challenging trails, a remote dropper seatpost is included. Shimano XT hydraulic disc brakes keep your speed in check, and the mullet configuration Newmen Beskar 30 wheels with Schwalbe 2.4in Magic Mary and Tacky Tan tyres ensure you can roll over any obstacles in your path with ease.
The Cube Stereo Hybrid ONE77 HPC frame has 170mm travel front and rear, a mullet wheel setup (29in front and 27.5in rear), and Integrated Cable Routing for clean looks and reduced maintenance. The frame also features an angle-adjustable headset, a 800 Wh PowerTube battery, and a UDH dropout on the aluminium rear triangle for durability. Additionally, a direct mount chainguard ensures smooth driving on rough terrain.
-
Frame C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
-
Fork Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm, Kashima Coated
-
Shock Fox Float X2 Factory, 230x65mm, High/Low Speed Rebound & Compression w/ 2-Position Lever, Kashima Coated
Engine Bosch Drive Unit Performance Line CX BDU38 Generation 5 (85Nm), Smart System
-
Battery Bosch PowerTube 800
-
Display Bosch Purion 400
Front brake Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
-
Rear brake Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
-
Rear derailleur Sram X0 Eagle AXS™ Transmission, 12-Speed
-
Shifters Sram AXS™ Pod Controller
-
Crankset Acid MTB Hybrid Pro, 36T
- Cassette Sram XS-1275, 10-52T
-
Chain Sram GX Eagle™ Transmission
Headset Acros AZF-675, ICR (Integrated Cable Routing) Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
-
Handlebar RaceFace ERA 35
-
Stem Cube Performance Stem E-MTB 35, FPI-Link
-
Handlebar tape/Grips Acid Disrupt, Soft Compound
Wheels Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
-
Front tyre Schwalbe Magic Mary, Addix Soft, Super Trail, Kevlar, 2.4
Saddle Acid Venec EMTB Trail 140
-
Seatpost Fox Transfer Factory 31.6mm, Kashima Coated
- Seatpost clamp Cube Semi-Integrated
| Riders Height | Frame Size | ||
| 4'10"- 5'2" (148 - 158cm) | 13" - 14" / X-Small | ||
| 5'2"- 5'6" (158 - 168cm) | 15" - 16" / Small | ||
| 5'6"- 5'10" (168- 178cm) | 17" - 18" / Medium | ||
| 5'10" - 6'1" (178 - 185cm) | 19" - 20" / Large | ||
| 6'1" - 6'4" (185 - 193cm) | 21" - 22" / X-Large | ||
| 6'4" - 6'6" (193 - 198cm) | 23" - 24" / XX-Large |
| Riders Height | Frame Size | ||
| 4'10"- 5'2" (148 - 158cm) | 13" - 14" / X-Small | ||
| 5'2"- 5'6" (158 - 168cm) | 15" - 16" / Small | ||
| 5'6"- 5'10" (168- 178cm) | 17" - 18" / Medium | ||
| 5'10" - 6'1" (178 - 185cm) | 19" - 20" / Large | ||
| 6'1" - 6'4" (185 - 193cm) | 21" - 22" / X-Large | ||
| 6'4" - 6'6" (193 - 198cm) | 23" - 24" / XX-Large |
