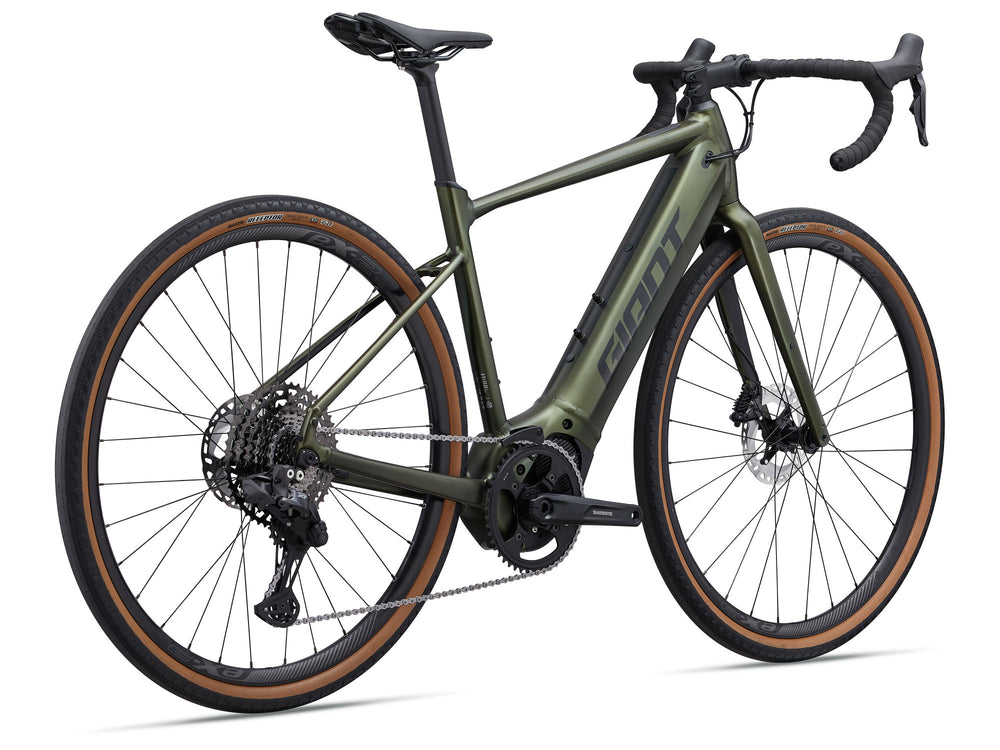

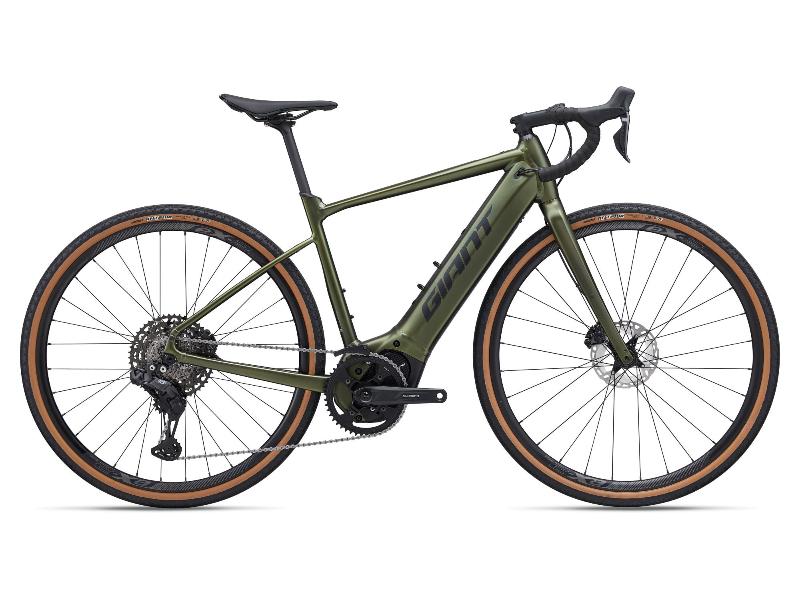

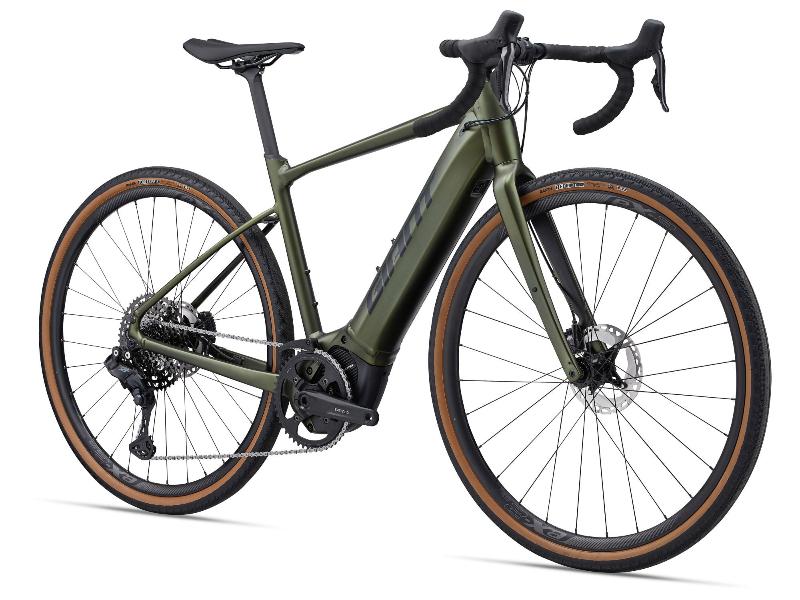

Giant Revolt E+ 1 Electric Bike 2024
6052000104
- Description
- Size Guide
- Delivery
Available to pre-order now. Due in with Giant June 2025 Contact the store for more details
This product features the latest SyncDrive EP6 motor, Shimano-powered, along with a lightweight ALUXX SL aluminium frame and tubeless tyres for a smooth ride. It also comes equipped with a D-Fuse seatpost for added comfort. With the EnergyPak Smart Compact 500 battery seamlessly integrated into the frame, you can tackle any road and route, enjoying long-distance pedaling support. Its sleek profile adds to its overall appeal.
With the activation of the RideControl Go on/off button located on the top tube, the Smart Assist feature ensures worry-free spinning. Additionally, the bike's ANT+ compatibility allows for easy integration with a chosen bike computer.
Colours: Phantom Green
-
Motor Shimano EP600, 85Nm
-
Battery Giant EnergyPak 500Wh Campact, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible
-
Charger Giant EnergyPak 4A smart charger compact, 60% charge in 2:00h
-
Controller Mode support switch from Shimano GRX STI
-
Display Giant RideControl GO, frame-integrated LED consoleOptional wireless ANT+ display
-
Frame ALUXX SL aluminium
-
Fork Advanced-grade composite,12x100 thru-axle
-
Handlebar Giant Contact XR D-Fuse 31.8 alloy 5° back sweep
-
Stem Giant Contact 31.8 alloy
-
Seatpost Giant D-Fuse SL, composite
-
Saddle Giant Approach
-
Pedals Aluminium Platform
-
Shifters Shimano Ultegra Di2 1x11
-
Front Derailleur N/A
-
Rear Derailleur Shimano XT Di2
-
Brakes Shimano BR-R8170, hydraulic disc, 160mm [F/R]
-
Brake Levers Shimano ST-R8170 hydraulic disc
-
Cassette Shimano CS-LG700-11, 11-50t
-
Chain KMC eGlide NP/BK, e-bike optimised
-
Crankset Shimano FC-EM600 crankarm Shimano SM-CRE80-R, 47T chainring
-
Bottom Bracket N/A
-
Rims Giant eX 2, Tubeless Ready, 700c Aluminium
-
Hubs Giant Performance Tracker Road, Sealed Bearing
-
Spokes Sapim E-Lite [r] Race [f]
-
Tyres Maxxis Receptor, EXO, 700x40c, Tubeless
-
Extras Tubeless kit (liquid, valves, levers, manual, tool)
| Riders Height | Frame Size | ||
| 4'10"- 5'0" (148 - 152cm) | 47 - 48cm / XX-Small | ||
| 5'0"- 5'3" (152 - 160cm) | 49 - 50cm / X-Small | ||
| 5'3"- 5'6" (160 - 168cm) | 51 - 53cm / Small | ||
| 5'6" - 5'9" (168 - 175cm) | 54 - 55cm / Medium | ||
| 5'9" - 6'0" (175 - 183cm) | 56 - 58cm / Large | ||
| 6'0" - 6'3" (183 - 191cm) | 58 - 60cm / X-Large | ||
| 6'3" - 6'6" (191 - 198cm) | 61 - 63cm / XX-Large |
