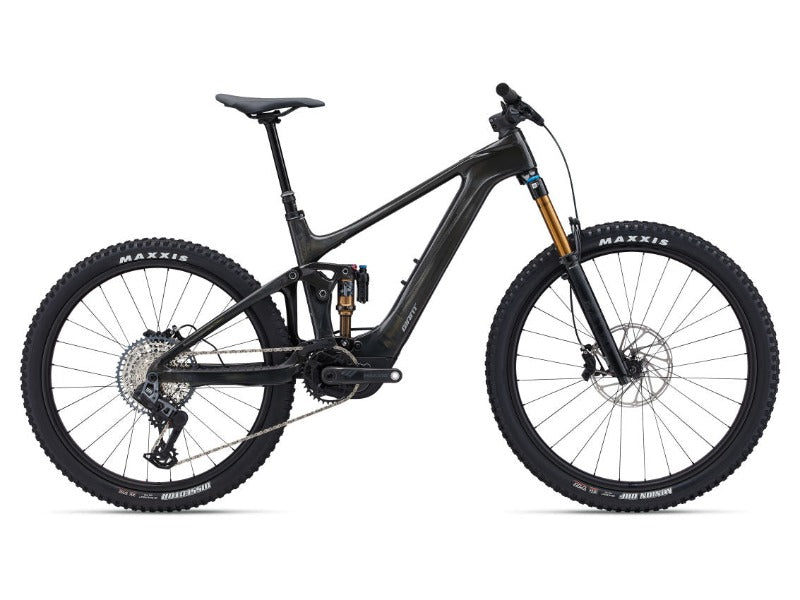

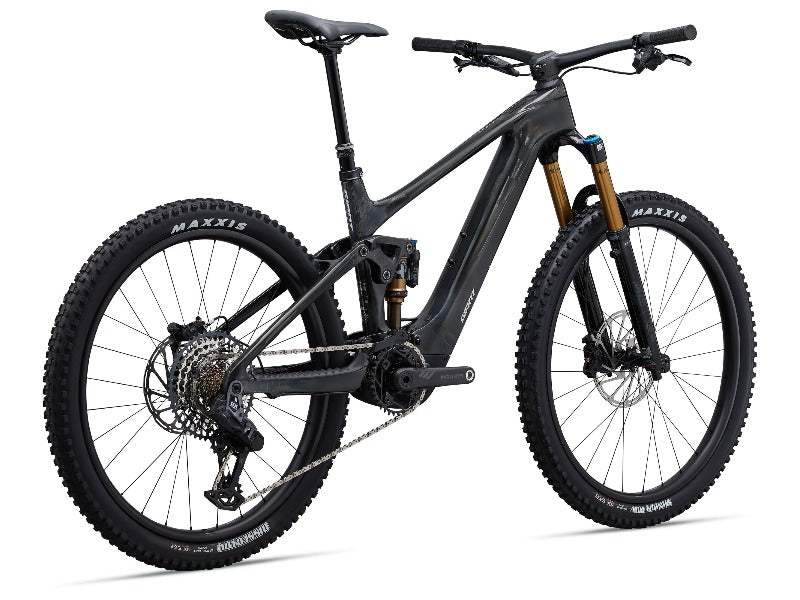

Giant Trance X Advanced E+ Elite 1 Electric Bike 2024
6028031104
- Description
- Size Guide
- Delivery
The EnergyPak 400 battery system is exceptionally sleek, providing ample power while being integrated seamlessly into the lightweight composite frameset. The RideControl Ergo 3 remote easily attaches to the Giant Contact SLR integrated handlebar, allowing for customizable control placement and a clutter-free cockpit. The new SyncDrive Pro Magnesium motor, with its lightweight magnesium casing, weighs only 2.5kg while delivering 85Nm of torque. It retains the immediate response that distinguishes SyncDrive Pro motors, and is designed for reduced noise and quiet operations.
Colours Raw Carbon
-
Motor Giant SyncDrive Pro2 Magnesium 85Nm, PedalPlus 6-Sensor technology
-
Controller Giant RideControl Ergo3, grip integrated remote
-
Display Giant RideControl GO, frame integrated LED console Optional wireless ANT+ display
-
Battery Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
-
Charger Giant EnergyPak 4A smart charger, 60% in 1:45
-
Connectivity Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
-
Frame Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
-
Fork Fox 36 Factory E-Tuned, 29er, 150mm travel, 44mm offset, Grip2 VVC damper, Kabolt-X 110
-
Shock Fox Float X Factory, EVOL, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30%
-
Handlebar Giant Contact SLR Trail, carbon, 800mm
-
Grips Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
-
Stem Giant Contact SLR Trail, integrated,40/45/50mm Reach, 7/9degree Sweep Adjust System
-
Seatpost Tranz-X Rad+ 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm)
-
Saddle Giant Romero, Neutral
-
Pedals PEDALS NOT SUPPLIED
-
Shifters SRAM AXS Rocker Paddle, wireless electronic shifting 1x12
-
Front Derailleur MRP HD2 co-moulded chain guide
-
Rear Derailleur SRAM GX Eagle Transmission, AXS
-
Brakes SRAM Code R, 4-piston hydraulic disc, 220mm[F], 200mm[R]
-
Brake Levers SRAM Code R
-
Cassette SRAM GX Eagle Transmission, 10-52T, 12-speed
-
Chain SRAM GX Eagle Transmission Flattop Chain, Powerlock
-
Crankset Praxis Carbon e-crank arms (S/M:160, L/XL:165) SRAM Eagle Transmission E-MTB Chainring , Steel 36T
-
Rims E-TRX Hookless Tubeless ready Carbon 29 [F] / 27.5 [R] 30mm inner width
-
Hubs E-TRX MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 SRAM XD Drive Body Pawl Driver (Pawl 36x2 T) Thru-axle [R]
-
Tyres Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
- Extras Tubeless kit (liquid, valves, levers, manual, tool) Inner tube supplied
| Riders Height | Frame Size | ||
| 4'10"- 5'2" (148 - 158cm) | 13" - 14" / X-Small | ||
| 5'2"- 5'6" (158 - 168cm) | 15" - 16" / Small | ||
| 5'6"- 5'10" (168- 178cm) | 17" - 18" / Medium | ||
| 5'10" - 6'1" (178 - 185cm) | 19" - 20" / Large | ||
| 6'1" - 6'4" (185 - 193cm) | 21" - 22" / X-Large | ||
| 6'4" - 6'6" (193 - 198cm) | 23" - 24" / XX-Large |
| Riders Height | Frame Size | ||
| 5'0"- 5'5" (152 - 165cm) | X-Small | ||
| 5'4"- 5'8" (162 - 172cm) | Small | ||
| 5'7"- 6'1" (170 - 185cm) | Medium | ||
| 6'0" - 6'4" (182 - 193cm) | Large | ||
| 6'3" - 6'8" (190 - 203cm) | X-Large |
| Riders Height | Frame Size | ||
| 4'10"- 5'2" (148 - 158cm) | 13" - 14" / X-Small | ||
| 5'2"- 5'6" (158 - 168cm) | 15" - 16" / Small | ||
| 5'6"- 5'10" (168- 178cm) | 17" - 18" / Medium | ||
| 5'10" - 6'1" (178 - 185cm) | 19" - 20" / Large | ||
| 6'1" - 6'4" (185 - 193cm) | 21" - 22" / X-Large | ||
| 6'4" - 6'6" (193 - 198cm) | 23" - 24" / XX-Large |
