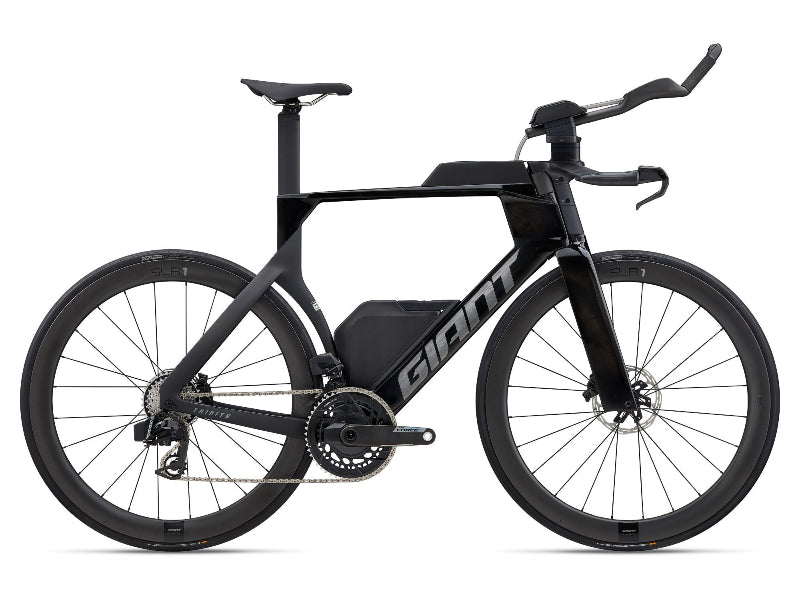

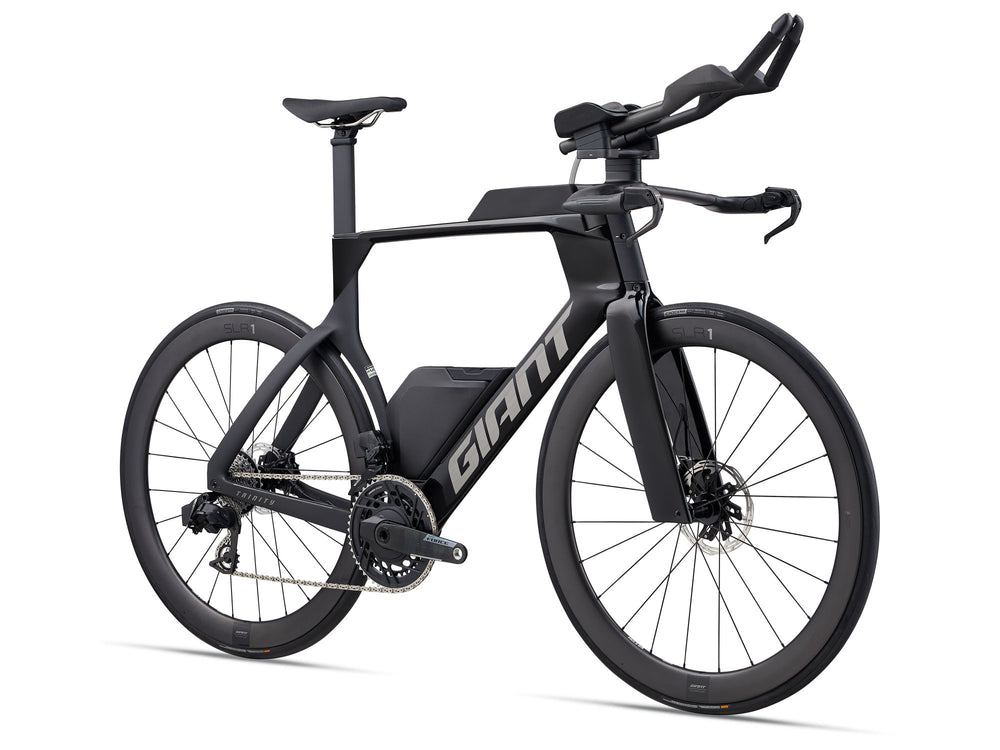

Giant Trinity Advanced SL 1 Time Trial Bike 2025
9138001104
- Description
- Size Guide
- Delivery
Available for pre-order. Expected to arrive Week 31

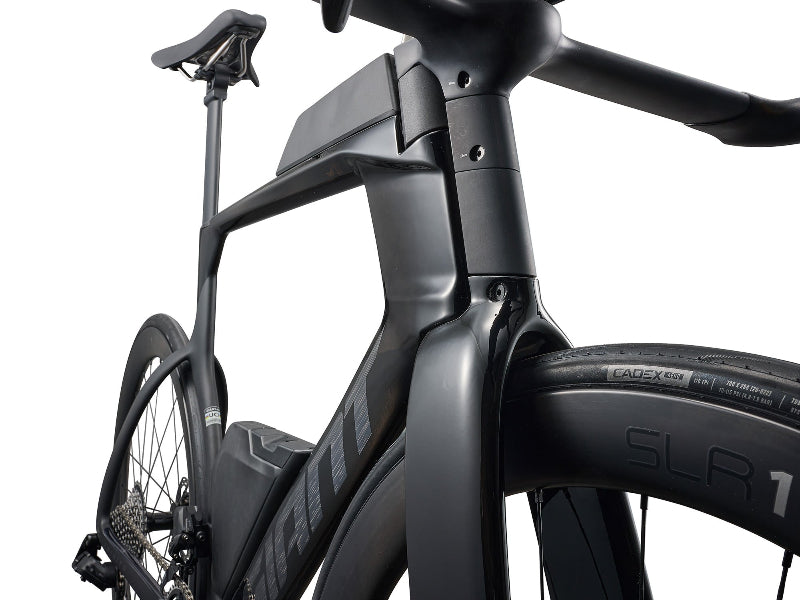

The brand new composite frameset is expertly designed to maximize speed and precision during time trials. It weighs 558g less for faster climbing, features integrated disc brakes for confident cornering and descending, and offers improved compliance for a smoother ride experience. Additionally, it includes an integrated bento box and hydration straw to ensure full power production without disrupting the rider's position. The Trinity Advanced SL 1 also boasts a wider range of adjustability compared to previous models, with four seatpost offset positions (51mm range) and 24x more armrest positioning options (stack, reach, angle and width), all easily adjustable with the help of simple two-bolt mechanisms.
Utilizing AeroSystem Shaping Technology, this time trial bike features truncated ellipse tubing which provides a 5.9-watt aero advantage and improved stiffness-to-weight ratio compared to previous generations of the Trinity model. Additionally, the integrated fueling system, including the hydration reservoir, bottles, and bento box, is optimized for aerodynamics.
Colours: Carbon/Matte Carbon
- Frame Advanced SL-Grade Composite, 12x142mm thru-axle, disc
- Fork Advanced SL-Grade Composite, full-composite steerer, 12x100mm thru-axle, disc
- Handlebar AeroDrive base bar with Sync armrest set, 10 and 15-degree extension wedge
- Stem AeroDrive integrated stem
- Seatpost Trinity Composite
- Saddle Giant Contact SL Tri
- Arm Rest Kit Sync armrest set
- Shifters SRAM eTap Clics - extension mounted, SRAM eTap Blips - basebar mounted
-
Front Derailleur SRAM Force AXS
- Rear Derailleur SRAM Force AXS D2
- Brakes SRAM S-900 Aero hydraulic, SRAM PaceLine X rotors [F]160mm, [R]140mm
- Brake Levers SRAM S-900 Aero AXS
- Cassette SRAM Force, 12-speed, 10x33
- Chain SRAM Force D1
-
Crankset SRAM Force AXS, 37/50 with SRAM power meter XS:160mm, S:165mm, M:170mm, L:172.5mm
- Bottom Bracket SRAM DUB, press fit
- Rims Giant SLR 1 50 WheelSystem, [F]40mm, [R]40mm
- Hubs [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
- Spokes Giant Aero Carbon Spoke
- Tyres CADEX Aero, tubeless, 700x25c (26.5mm), folding
- Extras TT storage, hydration kit, computer mount, tubeless prepared, 30mm max tire size
| Riders Height | Frame Size | ||
| 5'0"- 5'6" (152 - 167cm) | X-Small | ||
| 5'4"- 5'9" (162 - 175cm) | Small | ||
| 5'8"- 6'0" (172- 182cm) | Medium | ||
| 5'11" - 6'2" (180 - 188cm) | Medium/Large | ||
| 6'1" - 6'5" (185 - 195cm) | Large | ||
| 6'4" - 6'8" (193 - 203cm) | X-Large |
| Riders Height | Frame Size | ||
| 4'10"- 5'0" (148 - 152cm) | 47 - 48cm / XX-Small | ||
| 5'0"- 5'3" (152 - 160cm) | 49 - 50cm / X-Small | ||
| 5'3"- 5'6" (160 - 168cm) | 51 - 53cm / Small | ||
| 5'6" - 5'9" (168 - 175cm) | 54 - 55cm / Medium | ||
| 5'9" - 6'0" (175 - 183cm) | 56 - 58cm / Large | ||
| 6'0" - 6'3" (183 - 191cm) | 58 - 60cm / X-Large | ||
| 6'3" - 6'6" (191 - 198cm) | 61 - 63cm / XX-Large |
